凱龍主營 不銹鋼鋼絲繩

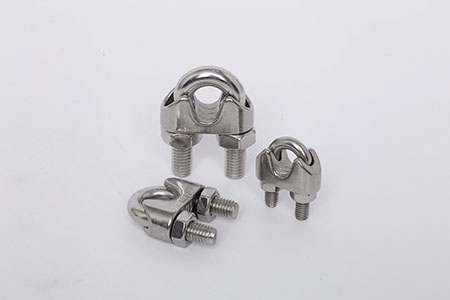

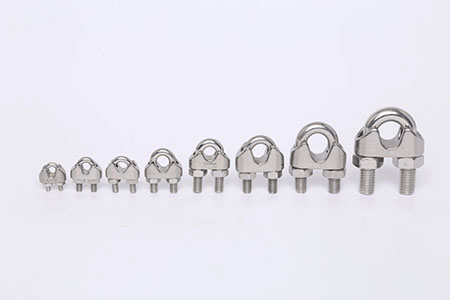

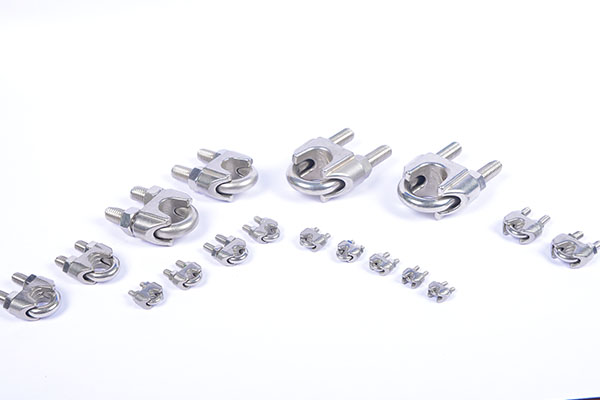

wire rope clips
 |  |

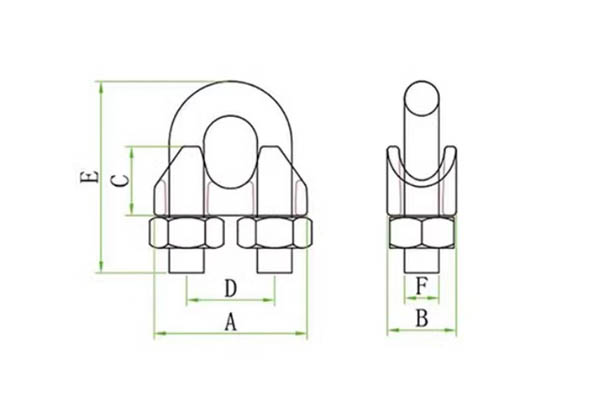

| Model | A | B | C | D | E | F |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| 2 | 17.0 | 9.5 | 9.5 | 7.0 | 21.0 | M3 |
| 3 | 21.0 | 10.0 | 10.0 | 9.0 | 21.0 | M4 |
| 4 | 21.0 | 10.0 | 10.0 | 9.0 | 23.5 | M4 |
| 5 | 23.0 | 10.0 | 10.0 | 10.0 | 26.0 | M5 |
| 6 | 25.0 | 11.5 | 11.5 | 13.0 | 29.0 | M5 |
| 8 | 29.0 | 13.0 | 14.0 | 15.5 | 33.0 | M6 |
| 10 | 33.0 | 15.0 | 16.5 | 19.5 | 43.0 | M8 |
| 12 | 40.0 | 18.0 | 18.0 | 23.0 | 50.0 | M10 |
| 16 | 49.0 | 24.5 | 25.0 | 28.0 | 65.0 | M12 |
| 20 | 53.0 | 27.5 | 30.0 | 32.0 | 77.0 | M12 |
