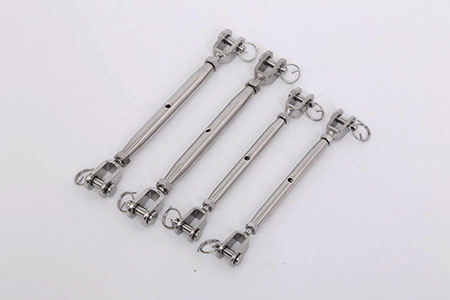

Turnbuckle
|  |
 |  |

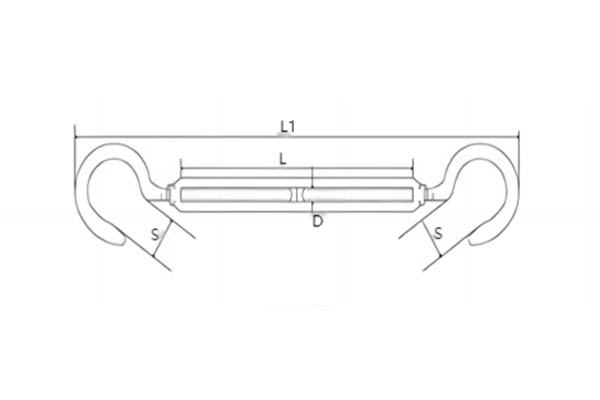

| Model | D | S | L | L1 | Adjustable Distance | Weight/100pcs |
| (mm) | (mm) | (mm) | (mm) | (mm) | (KG) | |
| M4 | 4.66 | 7.74 | 61.2 | 106.4 | 39.0 | 3.53 |
| M5 | 4.70 | 7.72 | 73.6 | 122.0 | 59.0 | 3.85 |
| M6 | 5.70 | 10.50 | 91.0 | 145.0 | 64.0 | 6.60 |
| M8 | 7.60 | 10.00 | 121.0 | 189.0 | 96.0 | 13.30 |
| M10 | 10.44 | 12.60 | 151.0 | 233.0 | 115.0 | 26.10 |
| M12 | 11.50 | 16.34 | 199.0 | 299.0 | 163.0 | 47.50 |
| M16 | 16.00 | 21.80 | 248.0 | 385.0 | 193.0 | 99.90 |
| M20 | 20.00 | 22.10 | 299.0 | 465.0 | 232.0 | 195.00 |
| M24 | 24.00 | 23.70 | 356.0 | 531.0 | 269.0 | 338.00 |

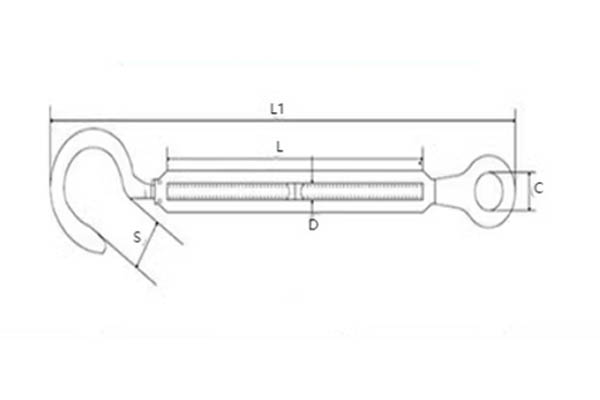

| Model | C | D | S | L | L1 | Adjustable Distance | Weight/100pcs |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (KG) | |
| M4 | 10.70 | 4.66 | 7.74 | 61.2 | 106.4 | 39.0 | 3.428 |
| M5 | 10.02 | 4.70 | 7.72 | 73.6 | 122.0 | 59.0 | 3.745 |
| M6 | 11.24 | 5.70 | 10.50 | 91.0 | 145.0 | 64.0 | 6.691 |
| M8 | 13.00 | 7.60 | 10.00 | 121.0 | 189.0 | 96.0 | 13.564 |
| M10 | 14.86 | 10.44 | 12.60 | 151.0 | 233.0 | 115.0 | 24.850 |
| M12 | 18.60 | 11.50 | 16.34 | 199.0 | 299.0 | 163.0 | 46.652 |
| M16 | 26.50 | 16.00 | 21.80 | 248.0 | 385.0 | 193.0 | 100.600 |
| M20 | 30.10 | 20.00 | 22.10 | 299.0 | 465.0 | 232.0 | 195.800 |
| M24 | 40.00 | 24.00 | 23.70 | 356.0 | 531.0 | 269.0 | 339.000 |

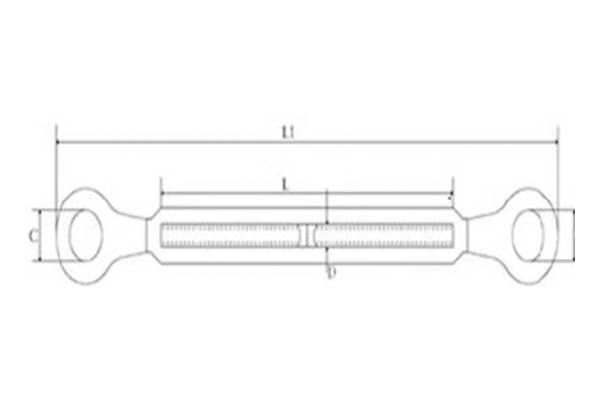

| Model | C | D | L | L1 | Adjustable Distance | Weight/100pcs |
| (mm) | (mm) | (mm) | (mm) | (mm) | (KG) | |
| M4 | 10.70 | 4.66 | 61.2 | 106.4 | 39.0 | 3.58 |
| M5 | 10.02 | 4.70 | 73.6 | 122.0 | 59.0 | 3.95 |
| M6 | 11.24 | 5.70 | 91.0 | 145.0 | 64.0 | 7.76 |
| M8 | 13.00 | 7.60 | 121.0 | 189.0 | 96.0 | 13.60 |
| M10 | 14.86 | 10.44 | 151.0 | 233.0 | 115.0 | 26.50 |
| M12 | 18.60 | 11.50 | 199.0 | 299.8 | 163.0 | 46.80 |
| M16 | 26.50 | 16.00 | 248.0 | 385.0 | 193.0 | 101.40 |
| M2O | 30.10 | 20.00 | 299.0 | 465.0 | 232.0 | 196.80 |
| M24 | 40.00 | 24.00 | 356.0 | 531.0 | 269.0 | 339.90 |
