凱龍主營 不銹鋼鋼絲繩
|  |
 |  |

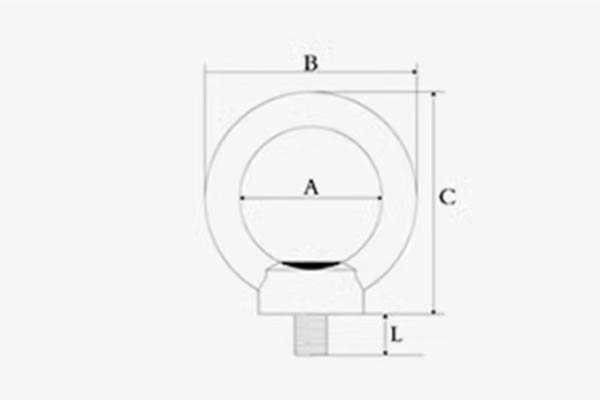

| 品名 | 型號 | A | B | C | L | Weight/100pcs | Load-bearing |
| Product Name | Model | (mm) | (mm) | (mm) | (mm) | (KG) | (KG) |

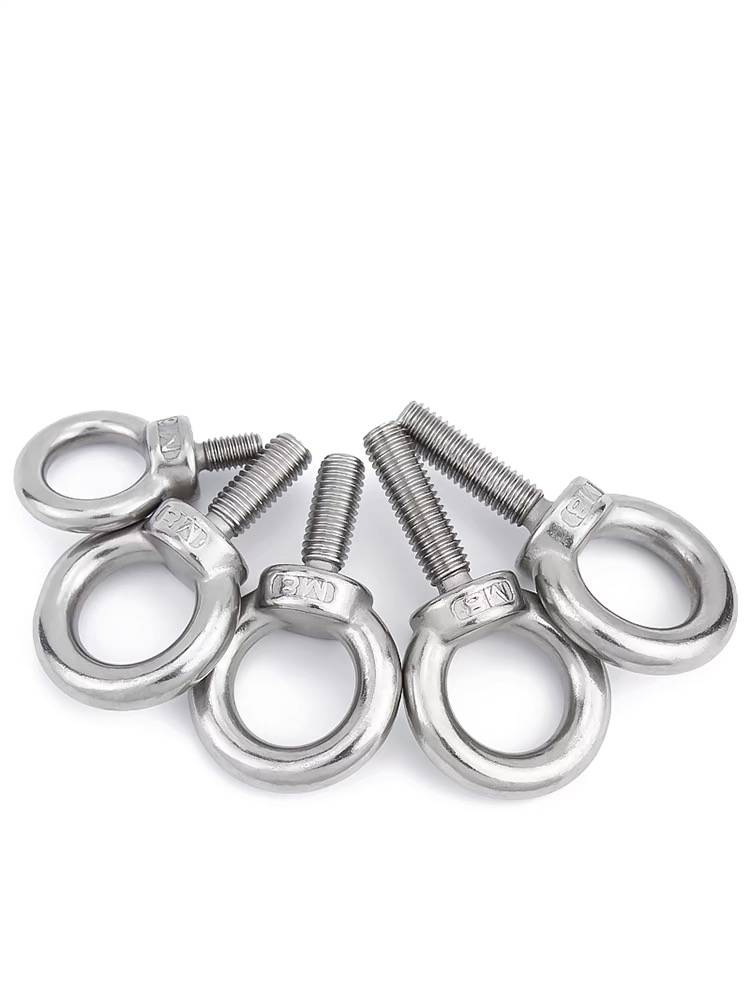

| Ring Screws | M3 | 7.20 | 13.40 | 14.14 | 9.20 | 0.287 | |
| M4 | 10.62 | 18.82 | 19.58 | 10.70 | 0.693 | ||
| M5 | 13.42 | 23.20 | 23.64 | 11.20 | 1.157 | ||
| M6 | 16.02 | 27.20 | 30.00 | 11.32 | 2.232 | 70 | |
| M8 | 20.04 | 35.24 | 36.82 | 13.92 | 4.510 | 140 | |
| M10 | 25.48 | 43.62 | 44.22 | 18.10 | 8.226 | 230 | |
| M12 | 29.76 | 51.14 | 51.50 | 18.34 | 12.818 | 340 | |
| M14 | 29.94 | 52.39 | 53.00 | 18.44 | 15.060 | 520 | |
| M16 | 34.68 | 60.00 | 60.74 | 24.72 | 22.115 | 700 | |
| M18 | 36.98 | 65.40 | 66.68 | 30.66 | 32.430 | ||
| M20 | 41.00 | 70.34 | 71.44 | 28.96 | 37.130 | 1200 | |
| M24 | 43.00 | 79.86 | 78.00 | 32.20 | 59.840 | 1800 | |
| M27 | 42.34 | 85.10 | 82.60 | 34.00 | 83.300 | 2700 | |
| M30 | 54.46 | 102.76 | 102.76 | 45.00 | 135.000 | 3600 | |
| M36 | 66.76 | 124.01 | 124.01 | 48.00 | 239.000 | 5100 |

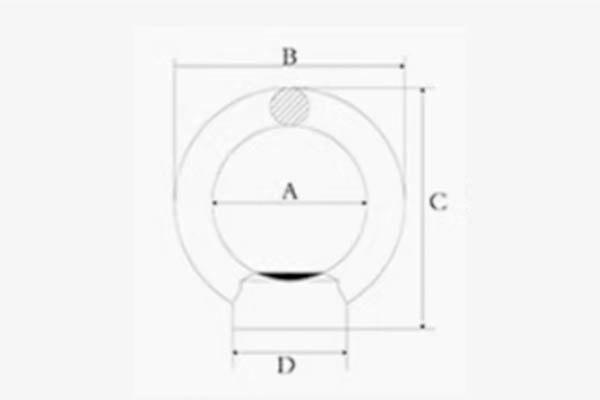

| 品名 | 規格 | A | B | C | D | Weight/100pcs | Load-bearing |
| Product Name | Model | (mm) | (mm) | (mm) | (mm) | (KG) | (KG) |
| 吊環螺母 Ring Nut | M3 | 7.28 | 13.44 | 13.84 | 6.94 | 0.240 | |
| M4 | 10.62 | 19.14 | 19.02 | 8.42 | 0.579 | ||
| M5 | 13.40 | 23.10 | 23.30 | 11.10 | 0.967 | ||
| M6 | 16.04 | 27.26 | 29.54 | 15.12 | 1.887 | 70 | |
| M8 | 20.06 | 35.04 | 36.46 | 17.86 | 3.757 | 140 | |
| M10 | 25.58 | 43.80 | 45.86 | 22.00 | 6.836 | 230 | |
| M12 | 29.96 | 51.02 | 51.90 | 25.80 | 10.668 | 340 | |
| M14 | 30.16 | 52.34 | 53.20 | 27.22 | 11.992 | 520 | |
| M16 | 34.96 | 60.04 | 61.60 | 30.32 | 17.390 | 700 | |
| M18 | 37.60 | 65.74 | 66.02 | 34.84 | 24.510 | 1000 | |
| M20 | 41.14 | 70.04 | 71.16 | 37.46 | 28.050 | 1200 | |
| M24 | 43.40 | 79.66 | 78.50 | 42.44 | 47.680 | 1800 | |
| M27 | 42.76 | 84.50 | 81.40 | 16.70 | 67.400 | 2700 | |
| M30 | 54.50 | 103.20 | 104.02 | 53.10 | 102.500 | 3600 | |
| M36 | 67.40 | 123.80 | 122.90 | 72.90 | 187.300 | 5100 | |
| M42 | 78.20 | 146.00 | 150.10 | 77.00 | 259.000 | ||
| M48 | 93.30 | 177.90 | 182.30 | 93.00 | 497.960 |
