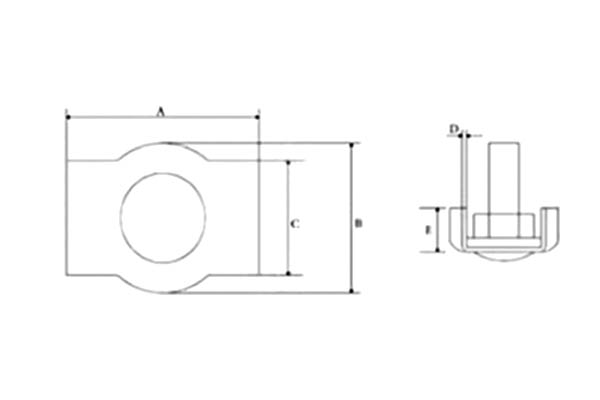

| Product Name | Model | A | B | C | D | E | Bolt | Weight/100pcs |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (KG) | ||
單夾 Single | M2 | 15.10 | 8.04 | 4.00 | 1.08 | 4.30 | M4*13 | 0.4068 |
| M3 | 17.00 | 11.02 | 6.04 | 1.20 | 6.34 | M4*13 | 0.5708 | |
| M4 | 20.18 | 13.52 | 8.10 | 1.44 | 6.66 | M5*17 | 0.9826 | |
| M5 | 25.20 | 15.00 | 10.02 | 1.48 | 10.00 | M5*17 | 1.3635 | |
| M6 | 30.50 | 20.22 | 12.22 | 2.00 | 10.02 | M6*22 | 2.5955 | |
| M8 | 38.04 | 25.12 | 17.28 | 2.00 | 10.50 | M8*29 | 4.4980 | |
| M10 | 48.00 | 38.00 | 27.00 | 2.50 | 14.00 | M10*31 | 9.8000 |
 |  |
|  |

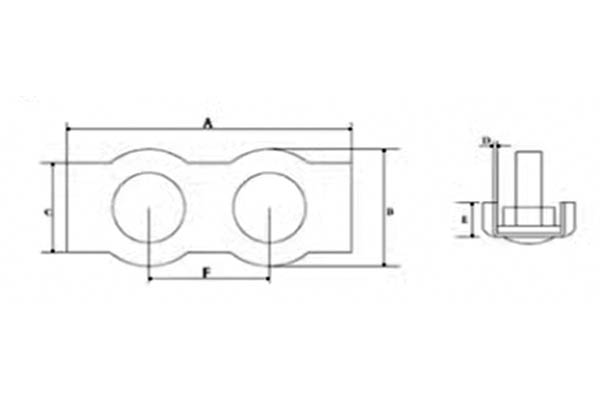

| Product Name | Model | A | B | C | D | E | F | Bolt | Weight/100pcs |
雙夾 Double clip | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (KG) | |
| M2 | 30.04 | 8.04 | 4.00 | 1.30 | 4.58 | 15.50 | M4*13 | 0.822 | |
| M3 | 34.30 | 11.12 | 6.18 | 1.16 | 5.92 | 17.48 | M4*13 | 1.122 | |
| M4 | 40.00 | 13.54 | 8.04 | 1.52 | 7.24 | 20.42 | M5*17 | 2.034 | |
| M5 | 50.04 | 15.04 | 10.08 | 1.46 | 8.08 | 25.20 | M5*17 | 2.625 | |
| M6 | 60.10 | 19.20 | 12.14 | 1.94 | 8.00 | 30.10 | M6*22 | 5.163 | |
| M8 | 75.38 | 25.14 | 17.14 | 2.00 | 10.00 | 38.38 | M8*29 | 9.054 | |
| M10 | 95.00 | 31.20 | 21.06 | 2.48 | 14.00 | 47.52 | M10*31 | 17.512 |
