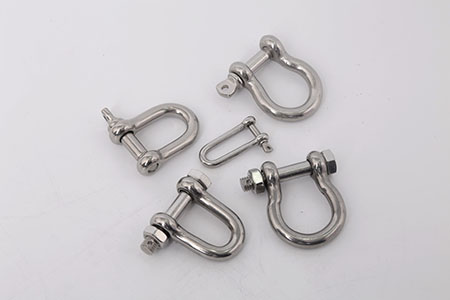

D shackle
 |  |

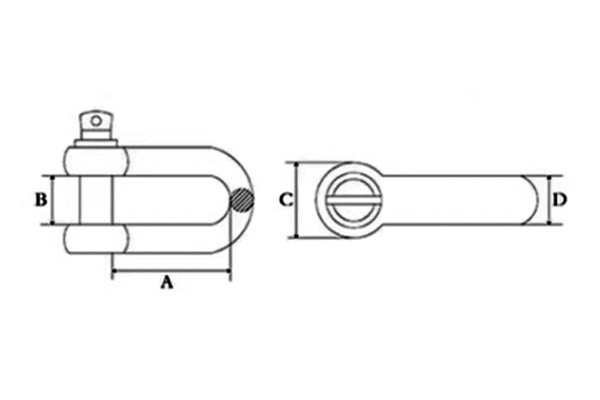

| Product Name | Model | A | B | C | D | Load-bearing | Weight/100pcs |
| (mm) | (mm) | (mm) | (mm) | (KG) | (KG) | ||
| D型卸扣 D Shackle | M4 | 16.00 | 8.10 | 8.16 | 3.90 | 100 | 0.794 |
| M5 | 21.60 | 11.20 | 10.02 | 4.60 | 160 | 1.345 | |
| M6 | 21.52 | 13.32 | 11.59 | 5.70 | 220 | 2.333 | |
| M8 | 28.40 | 16.14 | 15.81 | 7.74 | 400 | 5.544 | |
| M10 | 35.78 | 21.60 | 19.76 | 10.76 | 640 | 10.998 | |
| M12 | 40.00 | 25.30 | 23.54 | 11.72 | 880 | 18.878 | |
| M14 | 49.90 | 27.80 | 27.39 | 12.94 | 1120 | 29.823 | |
| M16 | 55.20 | 32.50 | 31.81 | 15.20 | 1600 | 43.702 | |
| M18 | 61.50 | 37.50 | 37.25 | 17.00 | 1800 | 63.693 | |
| M20 | 70.00 | 39.60 | 39.55 | 19.00 | 2000 | 86.443 | |
| M22 | 74.76 | 45.12 | 44.06 | 21.00 | 3000 | 116.300 | |
| M25 | 88.50 | 52.80 | 48.31 | 23.84 | 4000 | 156.450 | |
| M28 | 99.20 | 60.00 | 53.59 | 27.66 | 5000 | 235.770 | |
| M32 | 96.10 | 68.70 | 63.54 | 32.00 | 6400 | 327.100 | |
| M38 | 138.00 | 81.40 | 75.51 | 37.00 | 10000 | 615.700 |

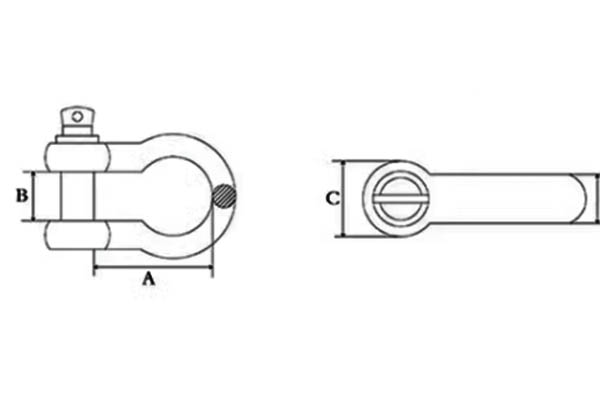

| Product Name | Model | A | B | C | D | Load-bearing | Weight/100pcs |
| (mm) | (mm) | (mm) | (mm) | (KG) | (KG) | ||
| 弓形卸扣 Bow shackle | M4 | 15.52 | 8.00 | 8.13 | 3.74 | 100 | 0.78 |
| M5 | 17.50 | 11.00 | 9.78 | 4.90 | 160 | 1.45 | |
| M6 | 24.48 | 13.10 | 11.63 | 5.70 | 220 | 2.48 | |
| M8 | 31.92 | 15.96 | 16.19 | 7.64 | 400 | 6.14 | |
| M10 | 40.10 | 19.44 | 19.96 | 10.56 | 640 | 12.05 | |
| M12 | 48.70 | 23.88 | 24.05 | 11.46 | 880 | 21.04 | |
| M14 | 55.00 | 27.90 | 26.74 | 13.62 | 1120 | 32.52 | |
| M16 | 62.12 | 33.00 | 32.07 | 14.20 | 1600 | 48.61 | |
| M18 | 71.70 | 37.80 | 35.85 | 17.00 | 1800 | 70.12 | |
| M20 | 81.86 | 41.10 | 39.83 | 18.90 | 2000 | 95.94 | |
| M22 | 82.32 | 46.76 | 44.69 | 21.58 | 3000 | 126.65 | |
| M25 | 102.00 | 57.00 | 48.24 | 24.00 | 4000 | 171.50 | |
| M28 | 118.40 | 61.10 | 55.43 | 27.50 | 5000 | 257.80 | |
| M32 | 135.00 | 69.00 | 67.52 | 31.30 | 6400 | 381.90 | |
| M38 | 179.00 | 80.00 | 75.06 | 38.00 | 10000 | 717.50 |
| Product Name | Model | Inner Width | Inner Height | Diameter | Load-bearing | Weight/pc |
| (mm) | (mm) | (mm) | (kg) | (kg) | ||
加長(zhǎng)卸扣 Extension shackle | M4 | 8 | 30 | 4 | 500 | 0.01 |
| N5 | 10 | 37.5 | 5 | 800 | 0.018 | |
| N6 | 12 | 45 | 6 | 1100 | 0.025 | |
| M8 | 16 | 60 | 8 | 2000 | 0.095 | |
| Y10 | 20 | 75 | 10 | 3200 | 0.18 | |
| Y12 | 24 | 90 | 12 | 4400 | 0.27 | |
| M14 | 28 | 98 | 14 | 5600 | 0.38 | |
| M16 | 32 | 120 | 16 | 8000 | 0.64 |
